Product Description
A nickel-chromium-molybdenum alloy that was developed as a fatigue-resistant bellows-quality version of INCONEL alloy 625. Alloying, melting and processing of this alloy are specially designed and controlled to provide a sheet product with optimum resistance to low-cycle and thermal fatigue at temperatures up to 1200°F (650°C).
Used in Aircraft exhaust and automotive flexible coupling bellows and expansion joints in various types of process or transport piping.
Used in Aircraft exhaust and automotive flexible coupling bellows and expansion joints in various types of process or transport piping.
STANDARD PRODUCT FORMS
Sheet and strip.
MAJOR SPECIFICATIONS
UNS N06625, N06626
ASTM B 443
ASME SB-443
SAE AMS 5879
ASME Code Case 2276
W.Nr. 2.4856
BS 3072 (NA21)
ASTM B 443
ASME SB-443
SAE AMS 5879
ASME Code Case 2276
W.Nr. 2.4856
BS 3072 (NA21)
LIMITING CHEMICAL COMPOSITION, %
Ni...........58.0 min.
Cr......20.0 – 23.0
Mo....... 8.0 – 10.0
Nba....3.15 – 4.15
aPlus Co.
Fe........... 5.0 max.
C...........0.03 max.
Si..........0.15 max.
N...........0.02 max.
Mn........0.50 max.
S........ 0.015 max.
Al..........0.40 max.
Ti..........0.40 max.
P........ 0.015 max.
Co........... 1.0 max.
Cr......20.0 – 23.0
Mo....... 8.0 – 10.0
Nba....3.15 – 4.15
aPlus Co.
Fe........... 5.0 max.
C...........0.03 max.
Si..........0.15 max.
N...........0.02 max.
Mn........0.50 max.
S........ 0.015 max.
Al..........0.40 max.
Ti..........0.40 max.
P........ 0.015 max.
Co........... 1.0 max.
PHYSICAL CONSTANTS AND THERMAL PROPERTIES
Density, Ib/in3.........................................................................0.305
g/cm3......................................................................... 8.44
Melting Range, °F....................................................2350 – 2460
°C....................................................1290 – 1350
Specific Heat, Btu/lb•°F.....................................................0.098
J/kg•°C............................................................ 410
Curie Temperature, °F.........................................................<-320
°C........................................................<-196
Permeability at 200 Oersted (15.9 kA/m).................. 1.0006
Coefficient of Expansion, 70 – 200°F, 10-6 in/in •°F........ 7.1
20 – 100°C, μm/m •°C.......... 12.8
Thermal Conductivity, Btu • in/ft2•h•°F...............................68
W/m •°C..............................................9.7
Electrical Resistivity, ohm •circ mil/ft................................ 776
μΩ•m................................................. 1.29
g/cm3......................................................................... 8.44
Melting Range, °F....................................................2350 – 2460
°C....................................................1290 – 1350
Specific Heat, Btu/lb•°F.....................................................0.098
J/kg•°C............................................................ 410
Curie Temperature, °F.........................................................<-320
°C........................................................<-196
Permeability at 200 Oersted (15.9 kA/m).................. 1.0006
Coefficient of Expansion, 70 – 200°F, 10-6 in/in •°F........ 7.1
20 – 100°C, μm/m •°C.......... 12.8
Thermal Conductivity, Btu • in/ft2•h•°F...............................68
W/m •°C..............................................9.7
Electrical Resistivity, ohm •circ mil/ft................................ 776
μΩ•m................................................. 1.29

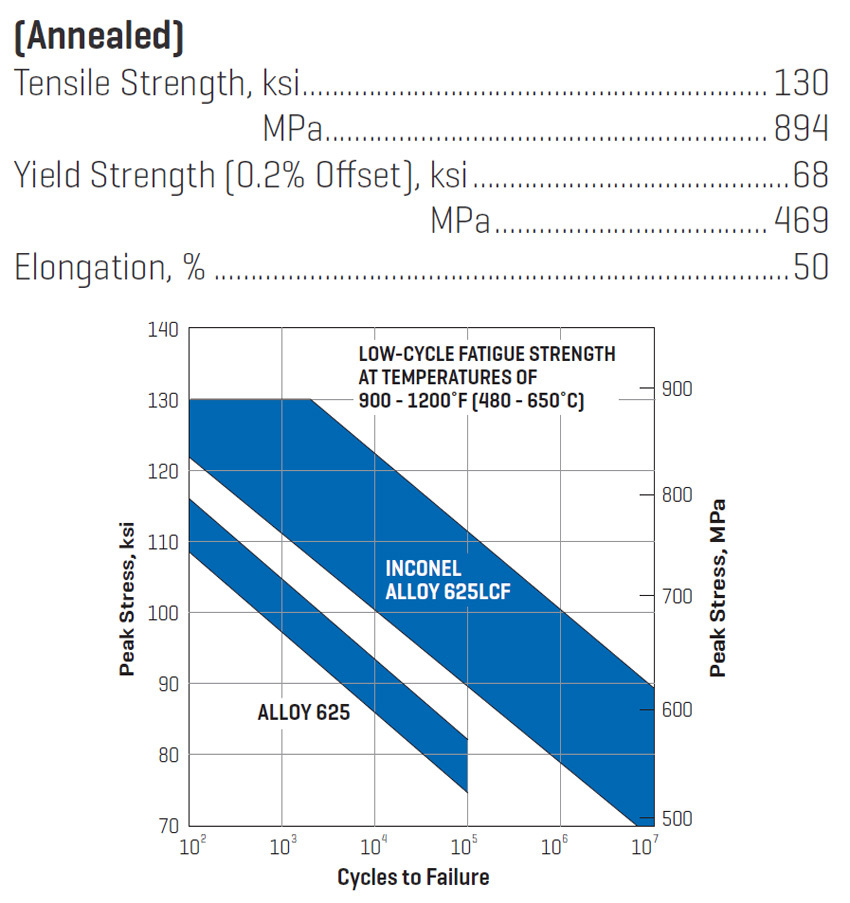

TYPICAL MECHANICAL PROPERTIES
